Processor and Memory
Chipset: GX6621
CPU: 32-bit CK610M, Up to 600MHz
GPU: Multi-standard video decoder
Flash: 8MByte (SPI Nor Flash)
SDRAM: 2Gbit DDR3
Interfaces:
LNB: DVB-S2 Tuner In (Tuner IC: RDA5815M)
1 AV 4-bit connector: Audio/CVBS/Coaxial
1 HDMI HD output connector: "HDMI output with upscale supporting up to 480p & 480i, 576p & 576i, 720p & 1080i50Hz & 1080P50Hz; HDMI 1.4 supports HDCP 1.2 and DDC"
1 RJ45 Ethernet: Interface without LED

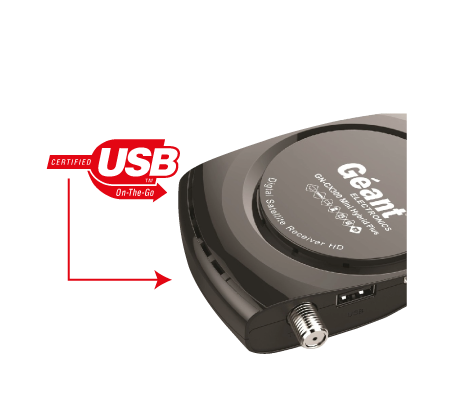

2 USB 2.0: "1 USB On Rear, 1 USB On Front; Support USB WIFI/3G device"
1 smart card interface: Support 5V CA card
General Features:
Operating System: ECOS
Power Consumption: "Working power consumption: Less than 12W;"
Ethernet:
10/100 MBit compatible Ethernet Interface
Play video files, connect to YouTube and some other video websites
G-MSCREEN
G-NET-UPDATE, GVOD, GIPTV
Internet Radio IPTV protocol [http or rtsp, rtmp, mms]
sat2ip, rss
Storage:
"USB2.0, High-speed and Full-speed devices supported, PVR is supported"
Supports all kinds of storage, recording, playing, and connecting all kinds of USB equipment.
Format: PAL, NTSC, SECAM
Video Full Resolution: 1920 × 1080P, 1920 × 1080i, and 1280 × 720p for HD video; 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video
"Standard: HEVC/H.265, ISO/IEC 14496-10, ISO/IEC 14496-2, ISO/IEC 13818-2, ISO/IEC 11172-2
H.265 video, BP/MP/HP up to L4.1, H.264 video, SP/ASP up to L5, MPEG-4 video, H.263 P3, AVS, AVS plus, MPEG-2 video, MP@HL, MPEG-1 video"
Aspect Ratio: 4:3, 16:9 Pan & Scan, Letterbox
True full Color (32 bits) on-screen display (OSD), QT OSD supported
Video planes: 6 planes (2 graphic planes, 2 display planes, background, cursor)
Audio:
"Standard: ISO/IEC 13818-3
Decoding: MPEG1 I/II, MP3, MPEG-4 AAC, and AAC plus (HE-AACv1 and v2), DRA, Dolby Digital (AC-3), Dolby Digital Plus (DD+)"
"Sampling Frequency: 32, 44.1, 48 kHz, and MPEG-2 half sampling rates of 16 kHz, 22.05 kHz, 24 kHz
Audio Output Impedance: Low"
Output Mode: Single channel, Dual-channel, Stereo, Left, and Right.
Picture:
Standard: JPG, BMP, GIF, PNG
DVB Function: Storing memory: 4000 TP, 8000 channels
Network search, auto search, and TP search
Supported program lock, delete, move (group move), rename, swap
Favorite group and parental lock supported
Supported transponder add, delete, edit
Supported multi-language menu (English, French, Russian, Greek, Italian, Arabic, Farsi, Ukrainian, Swedish, Spanish, Turkish, German, etc.)
PIP supported (support 9 SD channels or 2 HD channels)
Easy functions such as Group Move/Recall History
"7 days Electronic Program Guide (EPG) [can be up to 14 days], EPG from internet
Teletext output through VBI and OSD"
Software (data, kernel, and file system) upgrade through USB or Ethernet
Multi-language DVB Subtitle output
Tuner & Channel:
DVB-S/S2: DVB-S / DVB-S2 Satellite Compliant (MPEG-I/MPEG-II/MPEG-IV/H.263/H.264/H.265)
Input Impedance: 75Ω
Input Frequency: 9502150MHz
Symbol Rate: 2.045 MS/s
Tuner: RDA5815M
Demodulation: QPSK, 8PSK, 16APSK, 32APSK
Device Parameters:
Power Dissipation: Max 30W
Input Voltage: AC 100-240V~
Working Temperature: 0 ~ 40°C
Size: 280mm
